8-line Olfactometer Hardware

Full System Overview

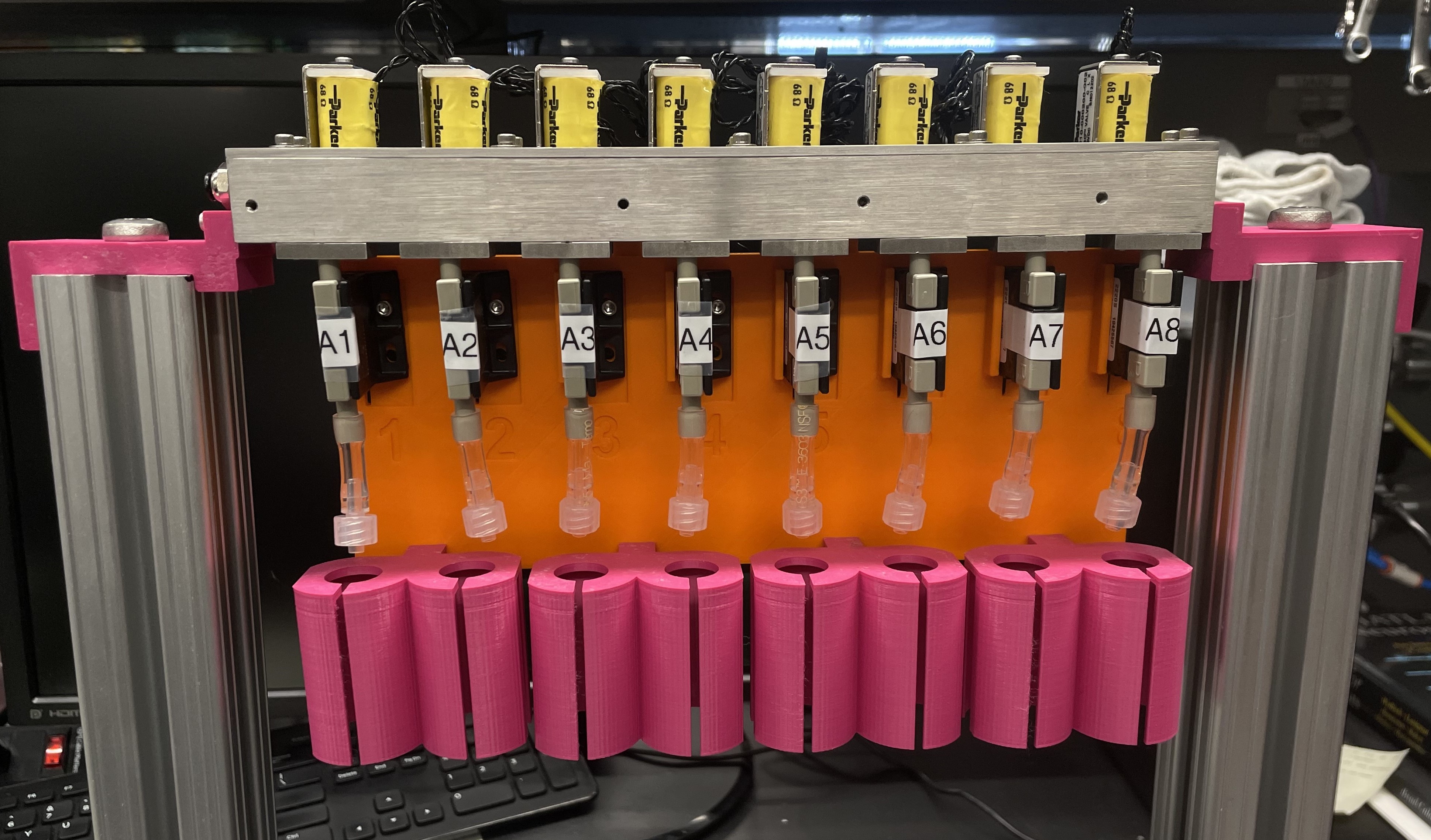

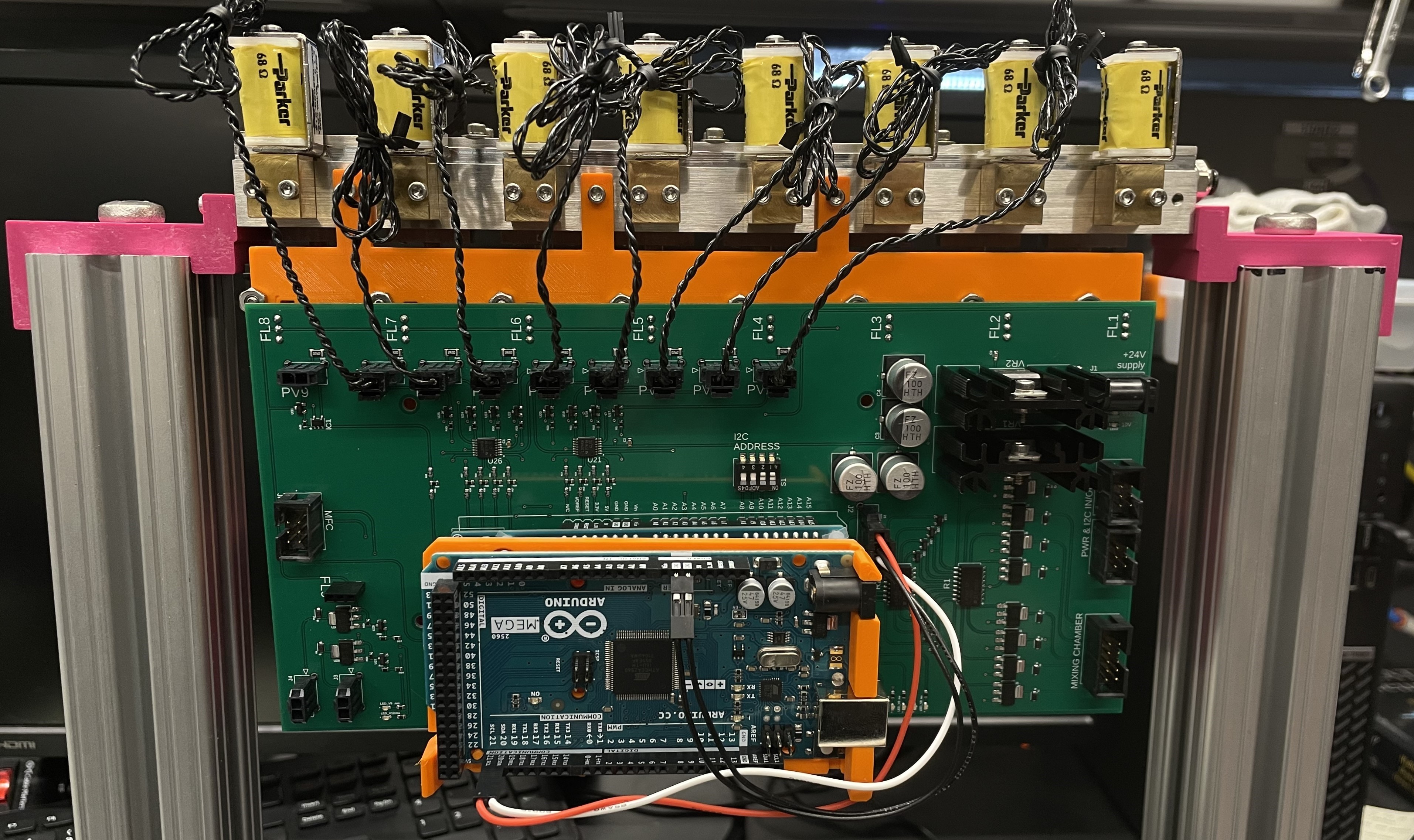

olfa_front.jpg olfa_back.jpg

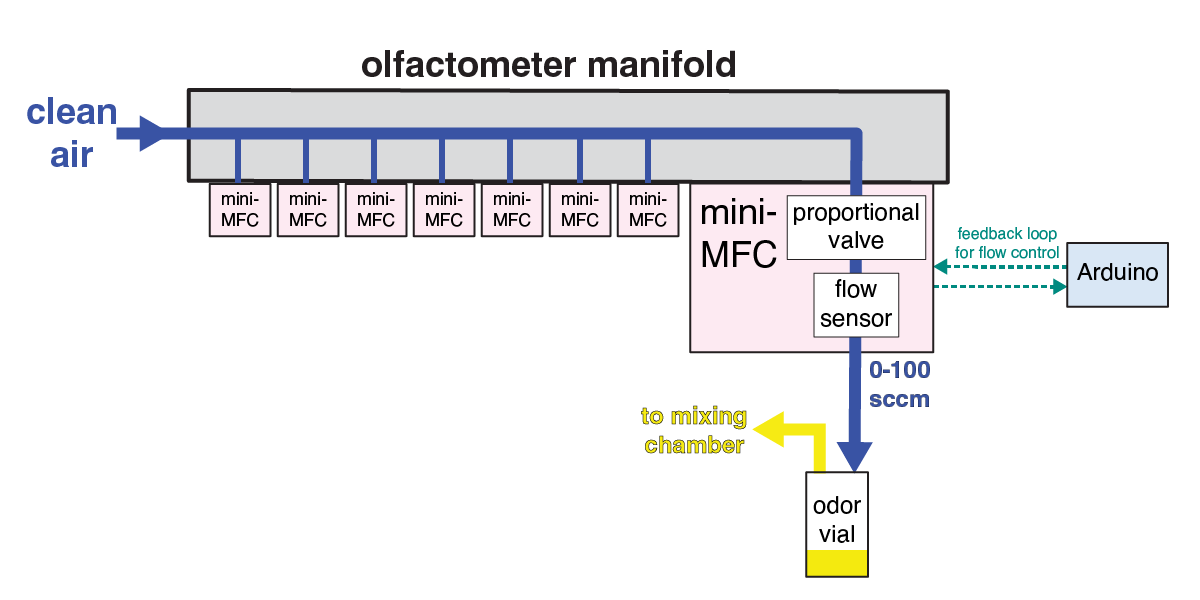

8-line olfactometer unit.png


Parts to be manufactured

to make a single 8-line unit: - (x1) top_cover - (x1) main_manifold_8v - (x8) main_manifold_cover


Updates for version 2:

  • main manifold: mounting holes for main plate on both sides
  • main manifold cover: 0.01" decrease in length (screw holes are now symmetric)
